Stainless steel wire mesh demister

With valuable experiences and devoted workers, we can fabricate demister pads from hand size to 16 meters (our record till now) in diameter. Also we can make the mesh pads into any shape and thickness as per customer request. No problem with vary densities for different applications.

Product Introduction

As we all know, stainless steel has excellent corrosion and rust resistance performance. The stainless steel demister pad not only has excellent chemical stability, it also has high separating efficiency and temperature resistance performance. Stainless steel demister pad is the most widely used type among all the metal demister pad.

Material of Stainless steel can be divided into different types according to the chemical composition.

304 Stainless steel
SS 304 is produced in accordance with the ASTM standard stainless steel grade. It is mainly containing 19% chromium, 9% nickel and other stainless steel. The 304 demister pad is the most widely used type in heat resistant applications.
Stainless steel 304 demister pad is widely used in the well-integrated equipment and parts because of the excellent corrosion resistance and formability. Additional, the stainless steel is non-toxic, so it can be used in the food production equipment for gas and liquid filtering and separating.
304L stainless steel
304L material is the variant of low carbon 304 stainless steel. As we all know, the carbide precipitation may cause intergranular corrosion in some environments, and the 304L can minimize the carbide precipitation in the heat affected zone, which is close to the weld area. The 304L is widely used in the welding occasions.
316L stainless steel
316L stainless steel is a type of stainless steel, which is added the molybdenum. It has better overall steel performance than the 310 and 304 stainless steel. It has excellent pitting resistance and high temperature creep strength performance.
Stainless steel 316L is widely used in the environments when the sulfuric acid is less than 15% and higher than 85%.
310 stainless steel
Stainless steel 310 is austenitic chromium-nickel stainless steel. Because of the high content of chromium and nickel, so it has excellent oxidation and corrosion resistance performance. Besides, the 310L material has high temperature resistance and good creep strength.
321 stainless steel
321 stainless steel has excellent high temperature stress rupture performance and high temperature creep resistance performance. Besides, the AISI 321 has better mechanical property than the 304 stainless steel. AISI 321 has good corrosion resistance performance at different concentrations and different temperatures of organic and inorganic acids, especially in the oxidizing medium. So it is widely used in the manufacturing of acid container, wearable devices and pipelines.
SS 321 is suitable in the chemical, coal, petroleum industries for corrosion resistance. Because of the addition of Mo, so it has excellent corrosion resistance, atmospheric corrosion resistance and high temperature resistance, so it is widely used in the sea, photographic equipment, chemicals, dyes, paper, fertilizer and other production equipment and food industries.


Types of stainless steel demister pad

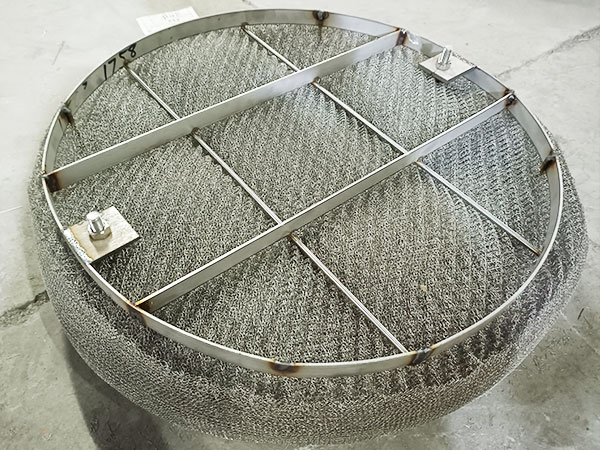

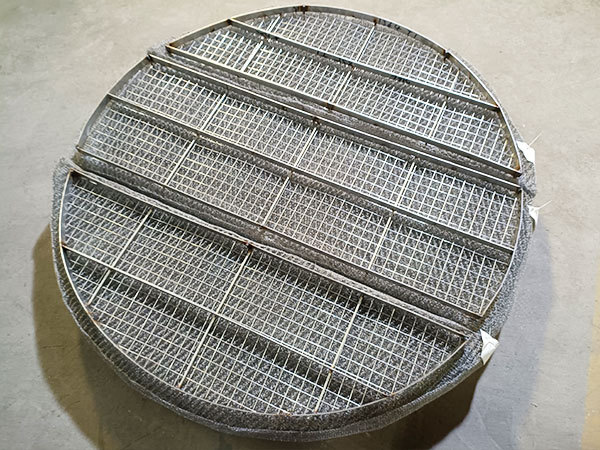

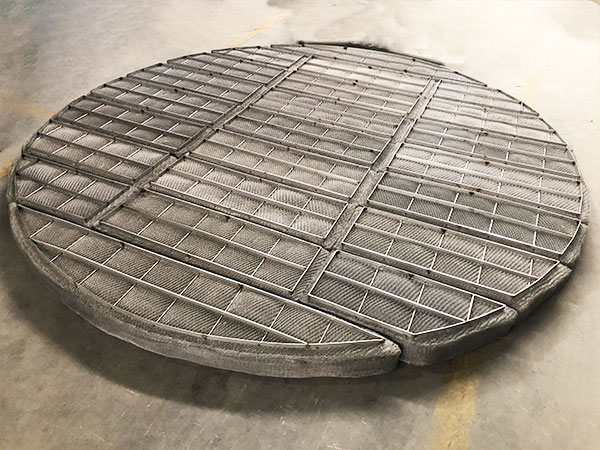

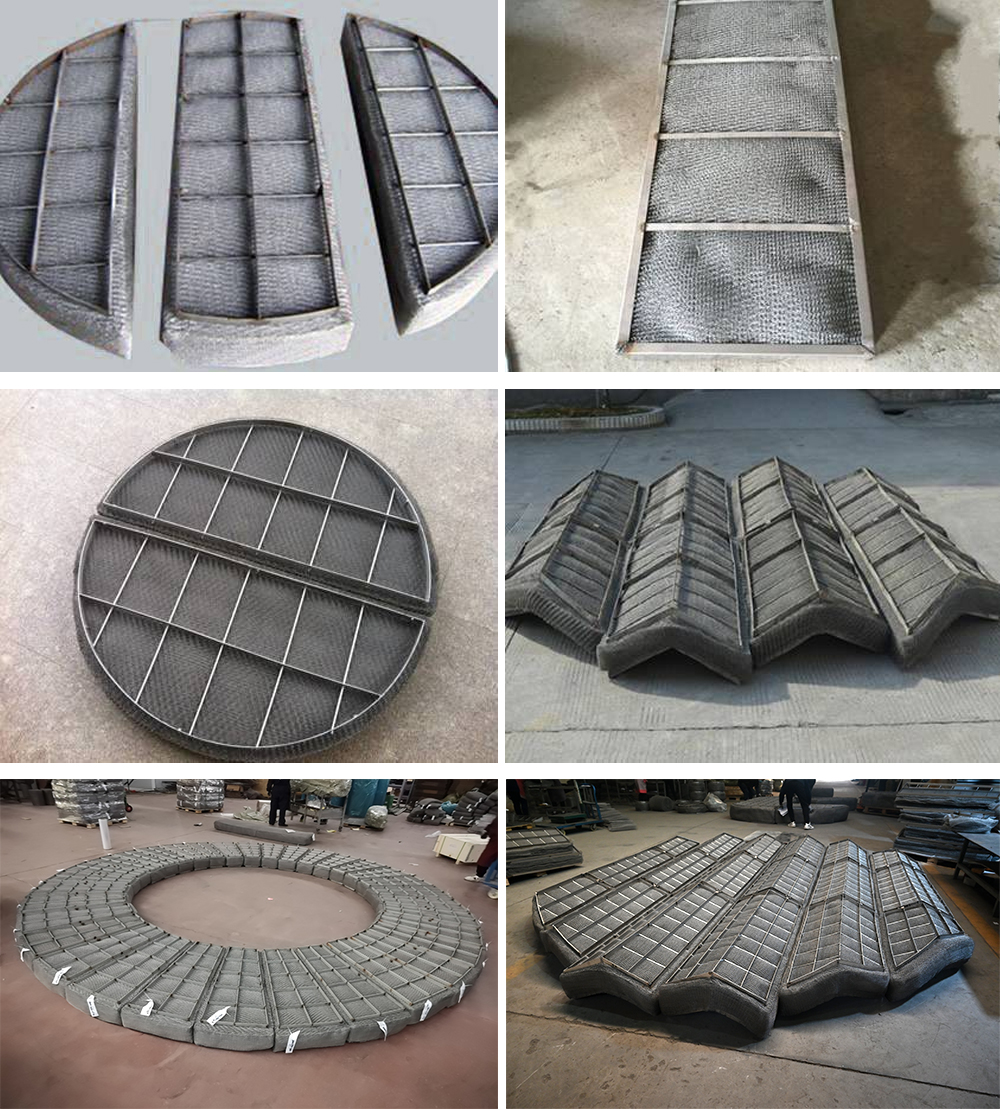

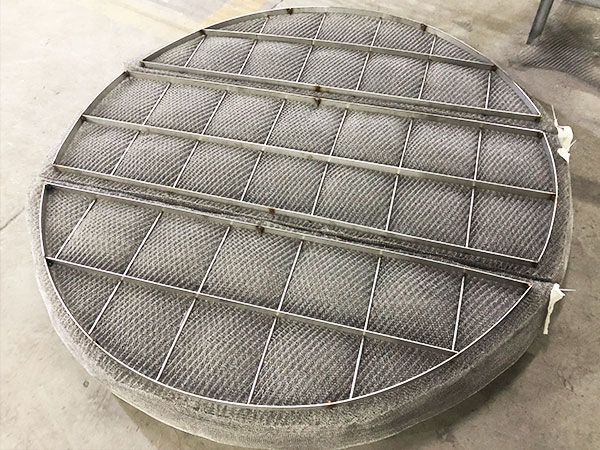

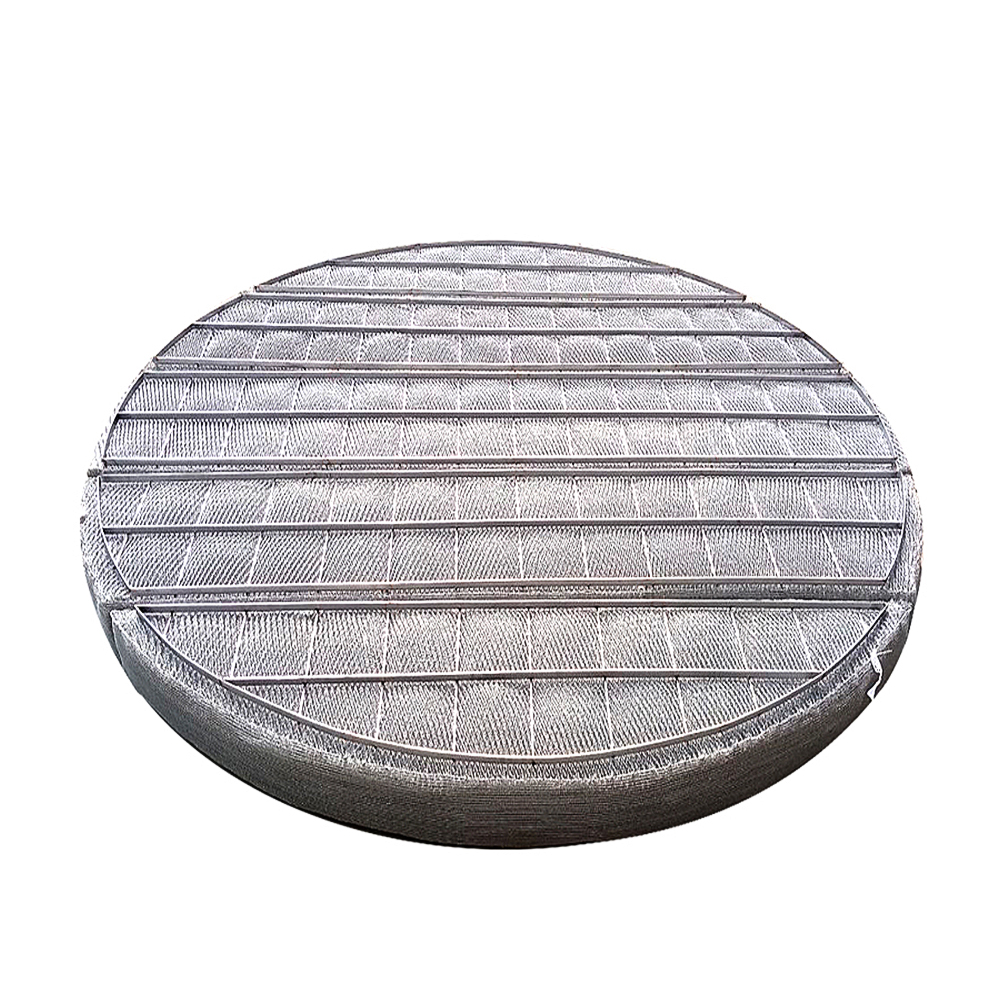

Stainless steel demister pad can be made into different types to suit different equipment and devices. Stainless steel demister pad can be made into round shapes, rectangular shapes, ring shapes and various customized shapes.
Stainless steel demister pad can also be made into drawer types and wavelike types. Drawer types for easy transporting and installing, wavelike types for larger contact area and higher filtering efficiency.

ss-demister-pad-ring 2.jpg
