In addition to the features of HG/T21618-1998 wire mesh demister, HG5-1404-81, HG5-1405-81, HG5-1406-81 wire mesh demister, drawer type wire mesh demister products, it has the following features.

 a. Realized gas to gas path, liquid to liquid path, basically eliminated the secondary entrain phenomenon, the effect of foam removal significantly improved.

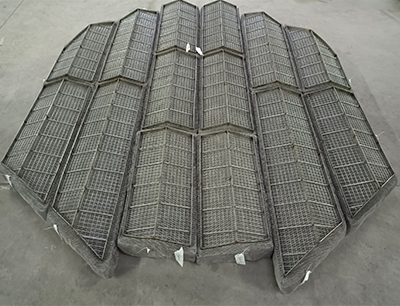

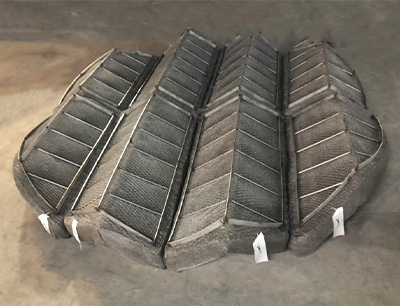

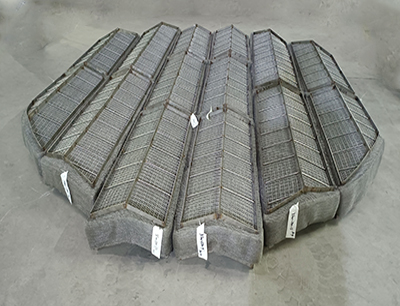

 b. Due to the inclined phenomenon of the mesh block, the actual foaming area is increased by 15%, which is easy to adjust the airflow, speed, resistance and foaming effect during design.

 c. Using one layer of wavy mesh demister can achieve the demister effect of two layers of mesh demister, saving installation space and reducing the cost of a single tower demister.

Material differentiation:

Wire: 304 321 201 316 316L 304A stainless steel, titanium wire, nickel wire, Monel wire, Q235 wire

 Plastic filament: polytetrafluoroethylene, polypropylene, polyethylene, glass fiber

 Glass fiber and wire mixed glass fiber mixed with stainless steel wire.
