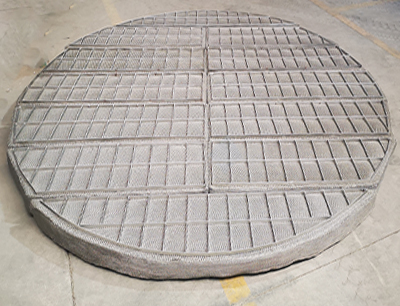

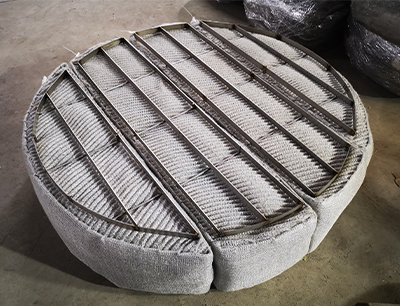

Mesh demister structure:

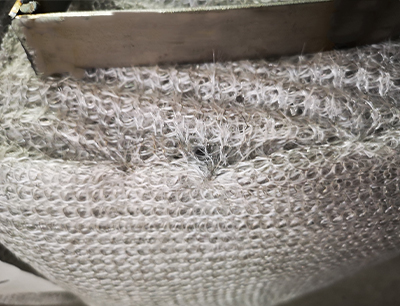

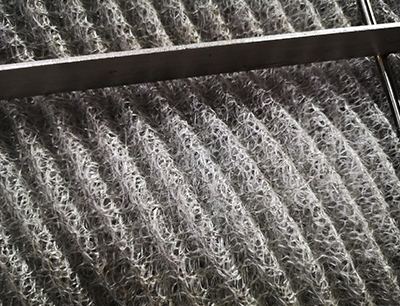

1 Wire mesh

2 Range bar

3-grid

4 supporting parts

Storage and maintenance

Storage:

Screen demister should be stored in a dry, ventilated, non-corrosive gas place, prohibit open storage.

Maintenance:

1 Screen demister should be regularly checked and cleaned to ensure demister efficiency and avoid increased pressure drop.

2 After the mesh demister is removed from the container, it should be cleaned and blown dry in time to avoid corrosion.

The wire mesh defroster is a typical product in the inertial collision defroster, which has the characteristics of high efficiency, simple structure and low resistance.

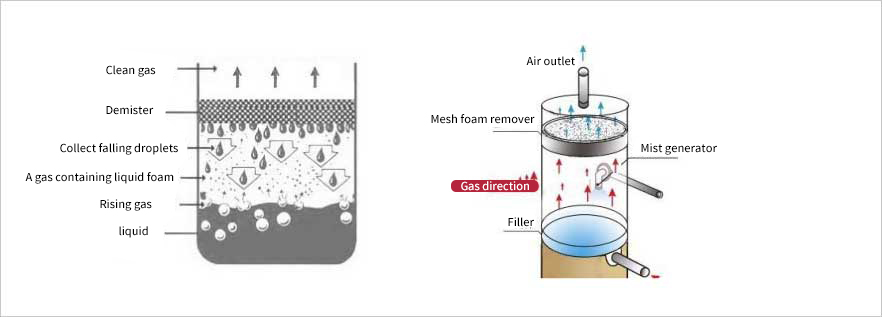

Purpose: Mesh demister (demister) is used to separate droplets entrainment by gas in the tower to ensure mass transfer efficiency. It can reduce the loss of valuable materials and improve the operation of the compressor after the tower, and generally set the screen demister at the top of the tower. It can effectively remove 3--5um fog droplets, and if the demister is set between the tray, it can not only ensure the mass transfer efficiency of the tray, but also reduce the plate spacing. Therefore, the mesh demister is mainly used for gas-liquid separation.
