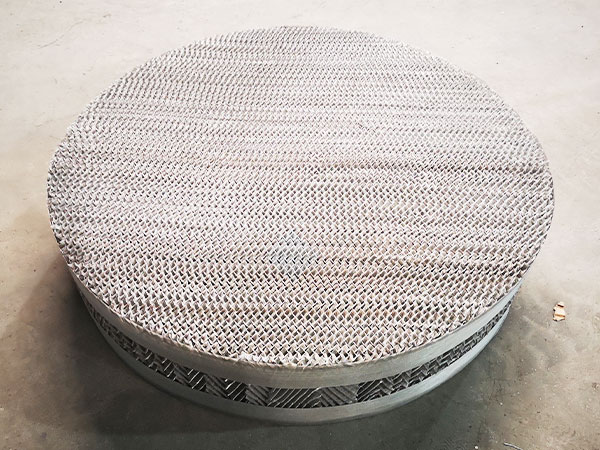

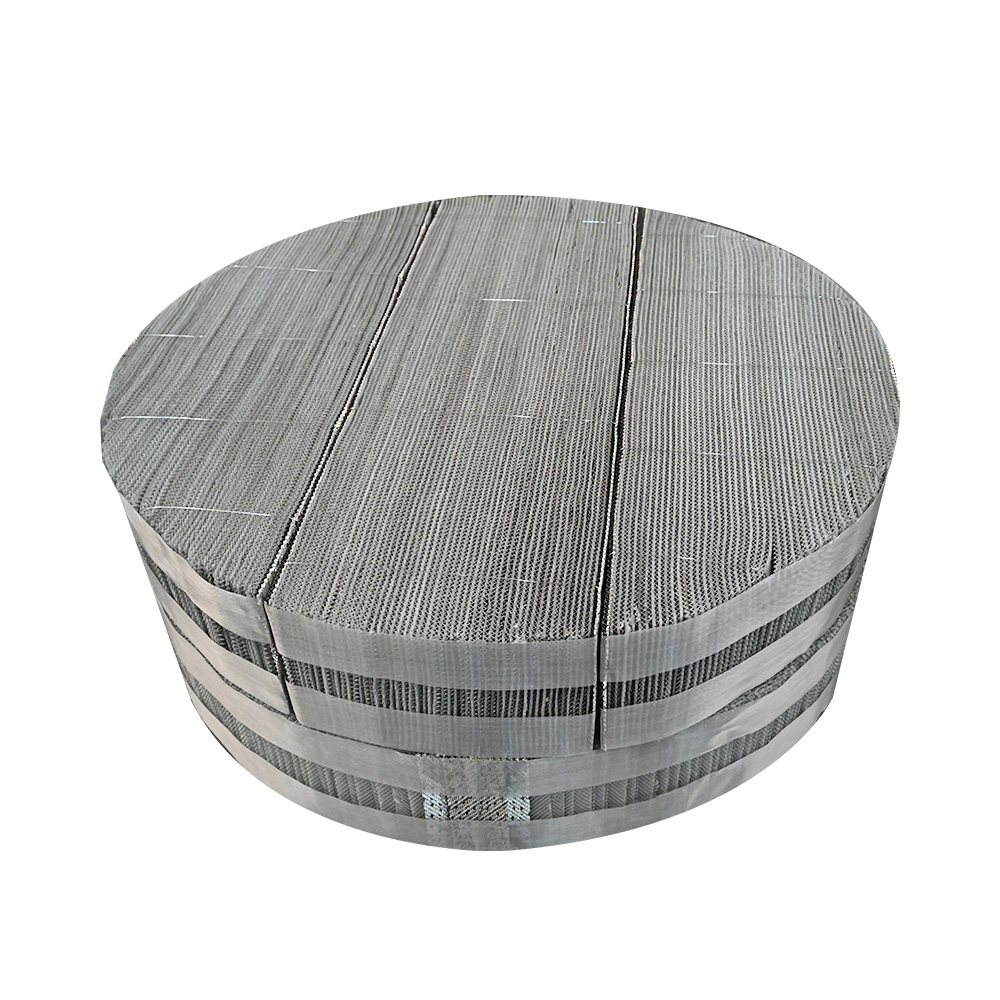

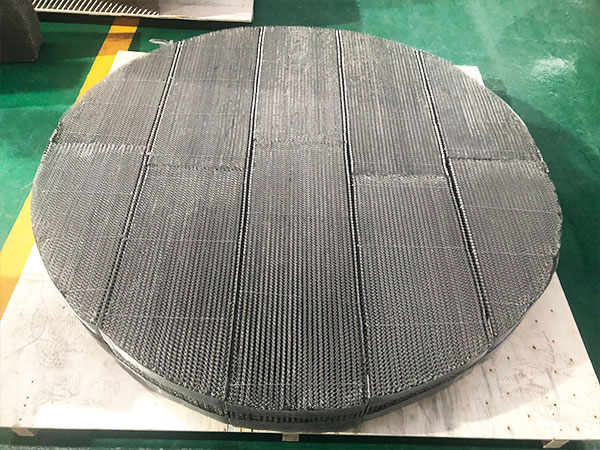

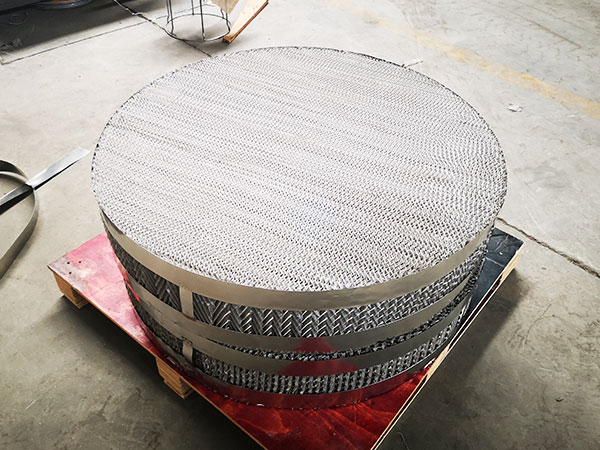

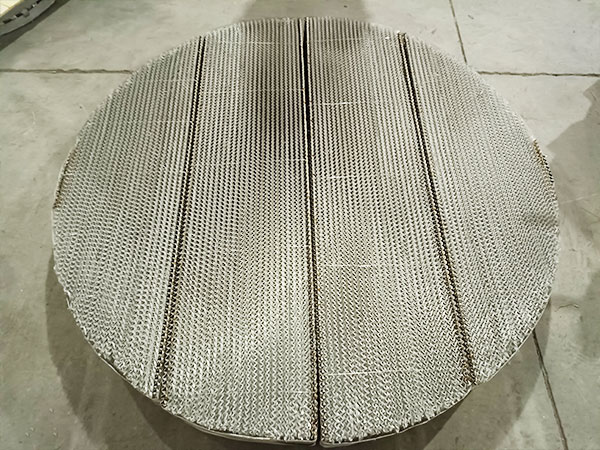

Stainless steel wire mesh corrugated packing
The low pressure drop high efficiency structured packing is mainly made of stainless steel material, and it is the best choice in the process of distillation, absorption and separation. It has been widely applied in petroleum refinery, chemical industry, chemical fertilizer, pharmacy, perfume, air separation, chemical machinery and other fields.
Wire gauze structured packing
Wire gauze structured packing is made of various metal wires, such as stainless steel wire, monel wire, copper wire and then woven into wire gauze. Wire gauze structured packing has low pressure drop, high separating efficiency, it is the most widely used type among all metal structured packing. It is suitable for precise distillation and vacuum distillation devices.
| Item | Model | Specific area (m2/m3) | Bulk density （kg/m3） | Voidage (%) | Pressure drop (Pa/m3) | Theoretical plate number m-1 |
|---|---|---|---|---|---|---|
| SPMW-01 | 250X | 250 | 125 | 95 | 100 - 400 | 2.5 - 3 |
| SPMW-02 | 500X | 500 | 250 | 90 | 400 | 4 - 5 |
| SPMW-03 | 700Y | 700 | 280 | 85 | 600 - 700 | 8 - 10 |
