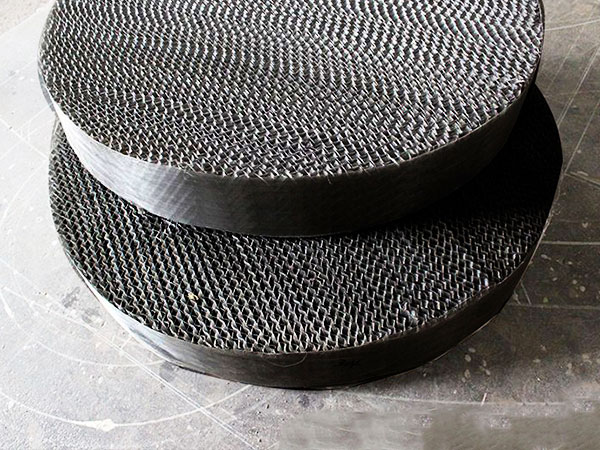

Titanium wire mesh corrugated packing
Metal Structured Packing
Metal structured packing can be made of various metal materials, such as low carbon steel, stainless steel, Monel, Ti and others. The stainless steel structured packing is the most widely used because of the excellent corrosion and rust resistance and durable properties. Metal structured packing has different packing types, which can be divided into wire gauze structured packing and perforated plate structured packing.
Wire gauze structured packing
Wire gauze structured packing is made of various metal wires, such as stainless steel wire, monel wire, copper wire and then woven into wire gauze. Wire gauze structured packing has low pressure drop, high separating efficiency, it is the most widely used type among all metal structured packing. It is suitable for precise distillation and vacuum distillation devices.
| Item | Model | Specific area (m2/m3) | Bulk density （kg/m3） | Voidage (%) | Pressure drop (Pa/m3) | Theoretical plate number m-1 |
|---|---|---|---|---|---|---|
| SPMW-01 | 250X | 250 | 125 | 95 | 100 - 400 | 2.5 - 3 |
| SPMW-02 | 500X | 500 | 250 | 90 | 400 | 4 - 5 |
| SPMW-03 | 700Y | 700 | 280 | 85 | 600 - 700 | 8 - 10 |
