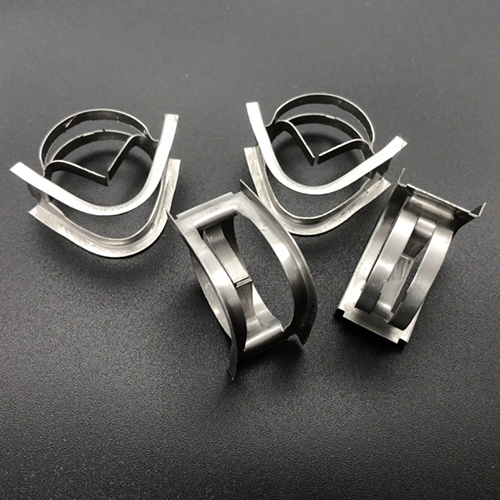

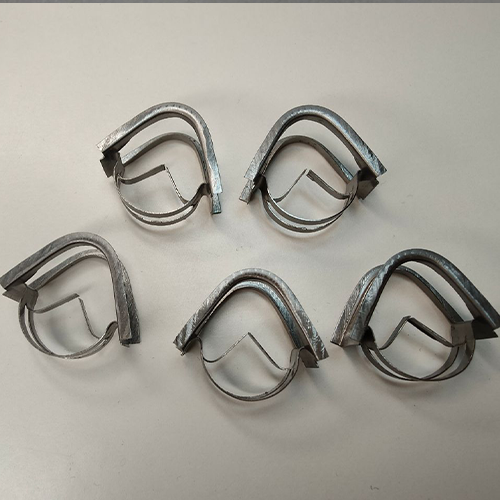

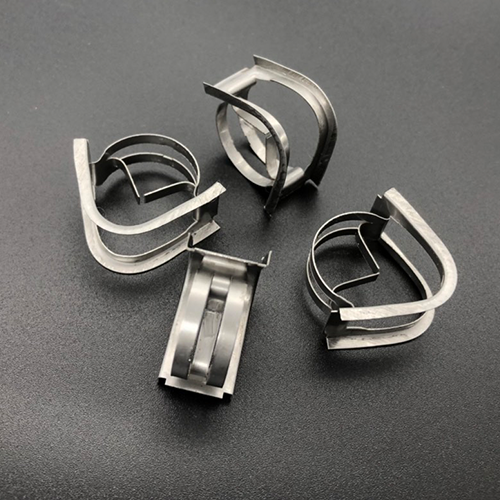

Intalox Saddle Ring
Intalox saddle ring, as its name says, the shape is similar to the saddle, but its shapes is between the ring and saddle. This design make full use of the advantage of ring and saddle. It can not only benefit for the liquid distribution, it can also improve the flux of gas. Compared with pall ring, it has larger flux, less resistance and higher efficiency. Additional, it has high rigid and mechanical strength, it is the most widely used type among all the random packing.
The material of intalox saddle ring can also be stainless, plastic and ceramic. Intalox saddle ring is mainly used in the drying towers, absorption tower, cooling tower, washing tower and regeneration tower of chemical, metallurgy, coal gas and environmental protection industries.
Item | Material | Size (D × T × H ) (mm) | Surface area (m2/m3) | Voidage (%) | Bulk density (kg/m3) | Filling quantity |
---|---|---|---|---|---|---|
RPSR-01 | Metal | 25 × 0.3 × 15 | 171 | 97.6 | 188 | 87720 |
RPSR-02 | Metal | 38 × 0.4 × 16.5 | 123 | 97.7 | 181 | 38160 |
RPSR-03 | Metal | 50 × 0.5 × 29 | 79 | 98.2 | 141 | 11310 |
RPSR-04 | Metal | 76 × 0.6 × 35.5 | 55 | 98.5 | 118 | 4250 |
RPSR-05 | Plastic | 25 × 1.2 ×12.5 | 288 | 85 | 12 | 97680 |
RPSR-06 | Plastic | 38 × 1.2 ×19 | 265 | 95 | 91 | 25200 |
RPSR-07 | Plastic | 50 × 1.5 × 25 | 250 | 96 | 75 | 9400 |
RPSR-08 | Plastic | 76 × 3.0 × 38 | 200 | 97 | 59 | 3700 |
RPSR-09 | Ceramic | 16 × 3 × 12 | 378 | 71 | 690 | 269900 |
RPSR-10 | Ceramic | 25 × 3 × 20 | 200 | 77 | 600 | 58230 |
RPSR-11 | Ceramic | 38 × 4 × 30 | 138 | 80 | 580 | 19680 |
RPSR-12 | Ceramic | 50 × 6 × 42 | 115 | 79 | 550 | 8246 |
RPSR-13 | Ceramic | 76 × 9 × 53 | 86 | 75 | 520 | 2400 |
