High flux packing
Metal Structured Packing
Metal structured packing can be made of various metal materials, such as low carbon steel, stainless steel, Monel, Ti and others. The stainless steel structured packing is the most widely used because of the excellent corrosion and rust resistance and durable properties. Metal structured packing has different packing types, which can be divided into wire gauze structured packing and perforated plate structured packing.
Perforated plate structured packing

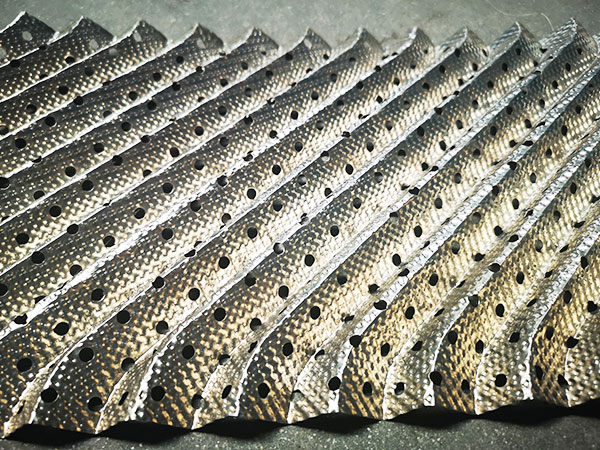

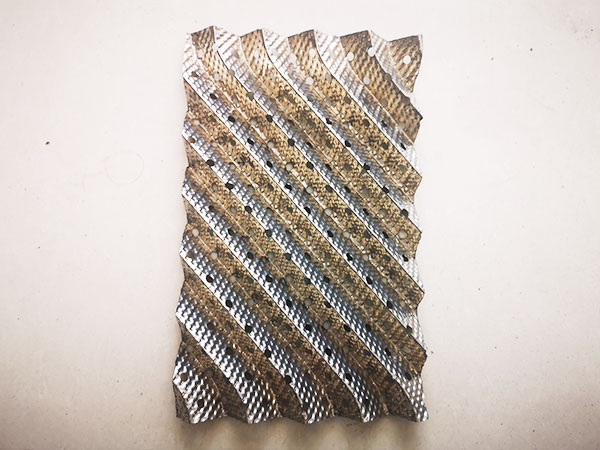

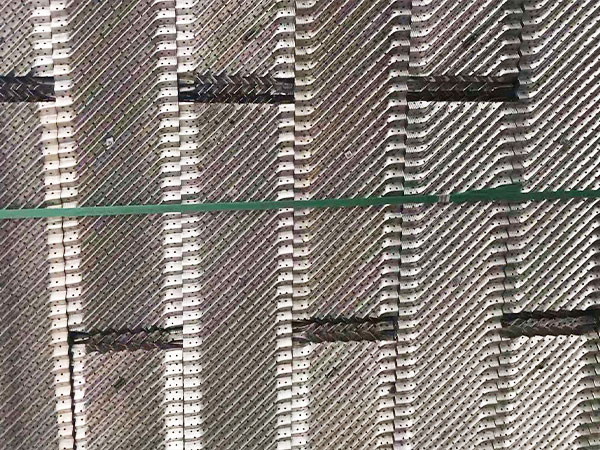

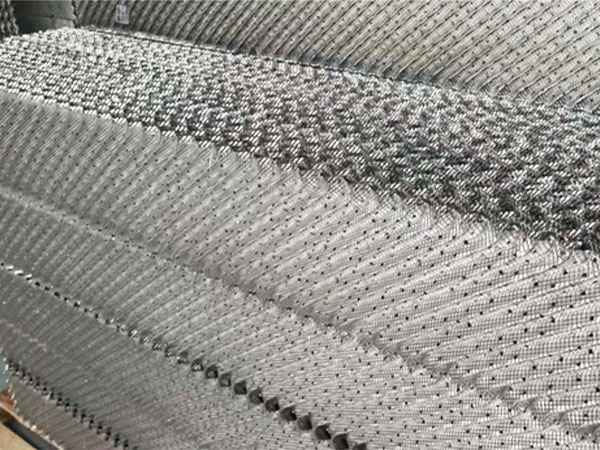

Perforated plate structured packing is made of various materials of metal plate. The plate are perforated to form a series of 5 mm holes and then corrugated. This design make the liquid evenly distributed. Additional, it can the improve the surface wettability of structured packing. The perforated plate structured packing has high strength and excellent corrosion and rust resistance performance to be used in the large diameter towers and high liquid loading applications.
There is a special perforated plate structured packing, which is named as protruded plate structured packing. The plate are protruded on the plate surface for improve the filtering efficiency.
Item | Model | Specific area (m2/m3) | Bulk density （kg/m3） | Voidage (%) | Pressure drop (Pa/m3) | Theoretical plate number m-1 |
|---|---|---|---|---|---|---|
| SPMP-01 | 125Y | 125 | 100 | 98 | 200 | 1 - 1.2 |
| SPMP-02 | 250Y | 250 | 200 | 97 | 300 | 2 - 2.5 |
| SPMP-03 | 350Y | 350 | 280 | 9 | 350 | 3.5 - 4 |
| SPMP-04 | 500Y | 500 | 360 | 92 | 400 | 4 - 4.5 |
| SPMP-05 | 125X | 125 | 100 | 98 | 140 | 0.8 - 0.9 |
| SPMP-06 | 250X | 250 | 200 | 97 | 180 | 1.6 - 2 |
| SPMP-07 | 350X | 350 | 280 | 94 | 230 | 2.3 - 2.8 |
| SPMP-08 | 500X | 500 | 360 | 92 | 280 | 2.8 - 3.2 |
