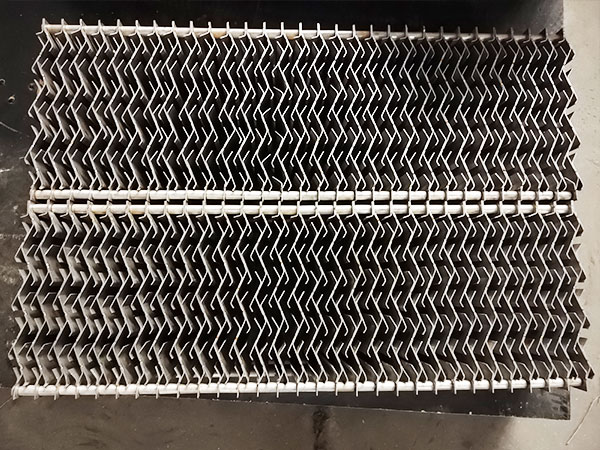

S-type fogger with hook baffle
Vane type eliminator is mainly used for flue gas desulfurization and separation of mist droplets in tail gas. It has the advantages of simple structure, high capture effciency for medium size and large size mist droplets, low pressure drop, easy flushing, open structure, easy maintenance and low cost.
| Vane shape | Hook (yes/no) | Vane height | Total height(with frame) |
| Streamline | yes | 170mm | Appr. 200mm |
| yes | 235mm | Appr. 250mm | |
| Poly-line | no | 170mm | Appr. 200mm |
| no | 235mm | Appr. 250mm | |
| no | 170mm | Appr.200mm | |
| no | 235mm | Appr. 250mm |
Both RPP and Stainless steel material is available. Long bolts and spacer can also be used as vane connection.
Stainless steel bracket is optional. Custom for other vane height.
